Add a hierarchical approach

Add a hierarchical (lexicographic) approach for multi-objective optimization to a multi-objective conservation planning problem (López Jaimes et al. 2009). Broadly speaking, this approach involves using multiple optimization procedures to solve each problem() in a multi_problem() object following a hierarchical (lexicographic) ordering, wherein those associated with a higher priority order are solved before those with a lower priority order. When implementing this approach, constraints are added after generating a given solution to ensure that subsequent solutions for lower priority problem() objects have adequate performance according to higher priority problem() objects.

Usage

add_hier_approach(x, rel_tol, priority = NULL, verbose = TRUE)

Arguments

x: multi_problem() object.
rel_tol: numeric vector or matrix denoting a set of the relative tolerance values for each constraint added during the hierarchical approach. For example, if x has two problems, then the hierarchical approach will involve adding one constraint and, in turn, require one rel_tol value. Alternatively, if x has three problems, then the hierarchical approach will involve adding two constraints and, in turn, require two rel_tol values. Given this, a vector can be used to specify a set of values for generating a single solution, where each value corresponds to a different constraint. Alternatively, a matrix can be used to specify multiple sets of values for generating multiple solutions, where each column corresponds to a different constraint and each row corresponds to a different solution. These rel_tol values specify how much each objective can be degraded in subsequent optimization procedures (in other words, how much wiggle room is allowed when optimizing other problem() objects with a lower priority). Greater rel_tol values denote a greater degree of sub-optimality (similar to the gap parameters in the solvers, such as add_gurobi_solver()). For example, a value of 0 corresponds to zero reduction in quality, and a value of 0.05 allows for up to a 5% reduction in quality. In other words, if a problem in x with the highest priority value had the minimum set objective (per add_min_set_objective()), then the solution resulting from this approach would cost no more than 105% of the total cost associated with a solution that just involved minimizing cost (assuming that all problem() objects in x had the same constraints). See Details section below for more information.
priority: numeric vector or matrix denoting the priority order for each problem() in x. A vector can be used to specify a set of values for generating a single solution, wherein each value corresponds to a different problem() in x. Alternatively, a matrix can be used to specify multiple sets of values for generating multiple solutions, wherein each column corresponds to a different problem() in x and each row corresponds to a different solution. Note that priority and rel_tol must have the same format (e.g., both must be a vector, or both must be a matrix). With the priority values, problem() objects in x that are associated with a higher value will be optimized before those with a lower value. See Details section below for more information. Defaults to NULL such that each problem() in x is assigned a priority reflecting their order in x (i.e., the first problem() is assigned the highest priority value, and subsequent problem() objects are assigned decreasing priority values).
verbose: logical should progress on generating multiple solutions be displayed? Defaults to TRUE.

Value

An updated multi_problem() object with the approach added to it.

Details

This multi-objective optimization approach is especially useful when there is a well-defined order of importance among objectives in a planning exercise (Williams and Kendall 2017; Schuster et al. 2023). In general, we recommend using this approach because it is highly flexible and can better characterize trade-offs than alternative approaches. By specifying an explicit priority order for each objective (per priority) and acceptable tolerances for degradation (per rel_tol), the parameters for this approach are highly transparent. Additionally, the approach is not sensitive to differences in scale among different objectives (unlike the weighted sum approach, add_wtd_sum_approach(); see Das and Dennis 1997 for details), and so it can be readily applied to a wide range of objectives.

The hierarchical approach involves solving the problem() objects in x based on a pre-defined order of priority (per priority). In particular, it involves the following steps: (i) the problem with the highest priority is selected (per priority); (ii) a solution is generated to this problem; (ii) the performance of the solution is measured based on its ability to achieve the objective for this problem (i.e., the objective value); (iii) the objective value and the relative tolerance parameter for this problem (per rel_tol) are used to constrain subsequent optimization analyses (i.e., wherein a greater rel_tol value means that subsequent solutions do not have to achieve such a good level of performance according to the objective for this problem); (iv) the problem with the next highest priority is selected (per priority); (v) steps (ii) – (iv) are repeated until a solution has been generated to the problem with the lowest priority (per priority); and (vi) the solution obtained from solving the problem with the lowest priority (per priority) is returned. Note that any constraints specified for any of the problem() objects in x will be considered during any of the optimization analyses. For example, if x has three problem() objects and the second problem has locked in constraints (per add_locked_in_constraints(), then these constraints will be considered when generating solutions to each of the three problems. Additionally, if any of the problem() objects in x are based on the minimum set formulation of the reserve selection problem (per add_min_set_objective()), then the targets will be considered when generating solutions to any of the problems in x. This is because the targets in a minimum set formulation are treated as (hard) constraints, and solutions must always meet them.

The priority and rel_tol parameters specify how much influence each problem() in x has over the multi-objective optimization process. For example, let's consider an example where x has three problems, priority = c(2, 4, 1), and rel_tol = c(0, 0.2). In this example, the second problem() in x will be optimized first because it has the highest priority value (i.e., 4) . After generating a solution to the second problem, subsequent optimization analyses will be constrained to ensure that all subsequent solutions perform no worse than optimality according to the objective of the second problem (because the first rel_tol value is 0). The first problem() in x will then be optimized next, because it has the next highest priority value (i.e., 2). After generating a solution based on the first problem, subsequent optimization analyses will be constrained to ensure that all subsequent solutions perform (i) no worse than optimality according to the objective of the second problem (because the first rel_tol value is 0), and (ii) no worse than a 20% reduction in performance according to the objective of the first problem (because the second rel_tol value is 0.2). Note that, because this new solution was generated with constraints to ensure optimal performance according to the second problem, this solution would likely have worse performance according to the objective of the first problem than a solution that was generated by solving the first problem directly. The third problem() in x will be optimized next, because it has the next highest priority value (i.e., 1). Since the problems optimized previously had relatively low relative tolerance parameters (i.e., 0 and 0.2), the performance of this new solution according to the objective of the third problem would probably have much worse than a solution that was generated by solving the third problem directly. Finally, the solution obtained by optimizing the third problem will be returned as the resulting solution from the multi-objective optimization approach.

Mathematical formulation

This approach can be expressed mathematically for a set of objectives associated with the problem() objects in x. Let $O$ denote the set of objectives (indexed by $o$). For brevity, we will assume that all of the objectives should ideally be maximized and have been sorted in order of priority (per priority), such that the objective with the highest priority is $o=1$, objective with the second highest priority is $o=2$, and so on. Also, let $f_o(x)$ denote the objective function for each objective $o \in O$, where $x$ represents all the decision variables for calculating the objective values (e.g., planning unit selection status values). Additionally, let $r_o$ denote the relative tolerance (per rel_tol) parameter for each objective $o \in O$. Furthermore, let $S$ represent the set (region) of feasible values for $x$ based on the constraints for all of the objectives (e.g., if the first problem in x has locked in constraints and the second problem has locked out constraints, then $S$ would account for both the locked in and locked out constraints). Given this terminology, the approach starts by solving the following optimization problem based on the first objective.

$$ \mathit{Maximize} \space f_1(x) \\ \mathit{subject \space to \space} x \in S $$

After solving this problem, let $v_1$ denote the optimal objective value for the solution. Next, the approach involves solving the following optimization problem based on the second objective, along with a constraint based on $v_1$ and the relative tolerance parameter for the first objective (i.e., $r_1$). $$ \mathit{Maximize} \space f_2(x) \\ \mathit{subject \space to \space} x \in S \\ f_1(x) \geq v_1 \times (1 - r_1) $$

Similar to the previous step, let $v_2$ denote the optimal objective value for the solution. The approach then involves solving the following optimization problem based on the third objective, along with constraints based on $v_1$ and $v_2$ and the relative tolerance parameters for the first and second objectives (i.e., $r_1$ and $r_2$). $$ \mathit{Maximize} \space f_3(x) \\ \mathit{subject \space to \space} x \in S \\ f_1(x) \geq v_1 \times (1 - r_1) \\ f_2(x) \geq v_2 \times (1 - r_2) $$

In this manner, the approach involves iteratively formulating and solving optimization problems until all of the objectives $o \in O$ have been considered. After a solution has been generated based on the last objective (i.e., lowest priority objective), then this solution is returned.

References

Das I and Dennis JE (1997) A closer look at drawbacks of minimizing weighted sums of objectives for Pareto set generation in multicriteria optimization problems. Structural Optimization, 14: 63–69.

López Jaimes A, Zapotecas Martínez S, and Coello Coello CA (2009) An introduction to multiobjective optimization techniques in Optimization in Polymer Processing. Eds Gaspar-Cunha A and Covas JA. Nova Science Publishers Inc, New York, United States.

Schuster R, Buxton R, Hanson JO, Binley AD, Pittman J, Tulloch V, La Sorte FA, Roehrdanz PR, Verburg PH, Rodewald AD, Wilson S, Possingham HP, and Bennett JR (2023) Protected area planning to conserve biodiversity in an uncertain future. Conservation Biology, 37: e14048.

Williams PJ and Kendall WL (2017) A guide to multi-objective optimization for ecological problems with an application to cackling goose management. Ecological Modelling, 343: 54-67.

Examples

# in this example, we aim to identify a set of planning units that will
# not exceed a particular budget and meet objectives for
# (i) representing species that are important for ecosystem
# functioning (hereafter, keystone species) and (ii) representing species
# that have high social or cultural value (hereafter, iconic species)

# import data
con_cost <- get_sim_pu_raster()
keystone_spp <- get_sim_features()[[1:3]]
iconic_spp <- get_sim_features()[[4:5]]

# define a total conservation budget (30% of total cost)
budget <- terra::global(con_cost, "sum", na.rm = TRUE)[[1]] * 0.3

# define a single-objective problem for the keystone species objective
p1 <-
  problem(con_cost, keystone_spp) %>%
  add_min_shortfall_objective(budget) %>%
  add_relative_targets(0.4) %>%
  add_binary_decisions()

# define a single-objective problem for the iconic species objective
p2 <-
  problem(con_cost, iconic_spp) %>%
  add_min_shortfall_objective(budget) %>%
  add_relative_targets(0.45) %>%
  add_binary_decisions()

# solve the single-objective problems
s1 <-
  p1 %>%
  add_default_solver(verbose = FALSE) %>%
  solve()
s2 <-
  p2 %>%
  add_default_solver(verbose = FALSE) %>%
  solve()

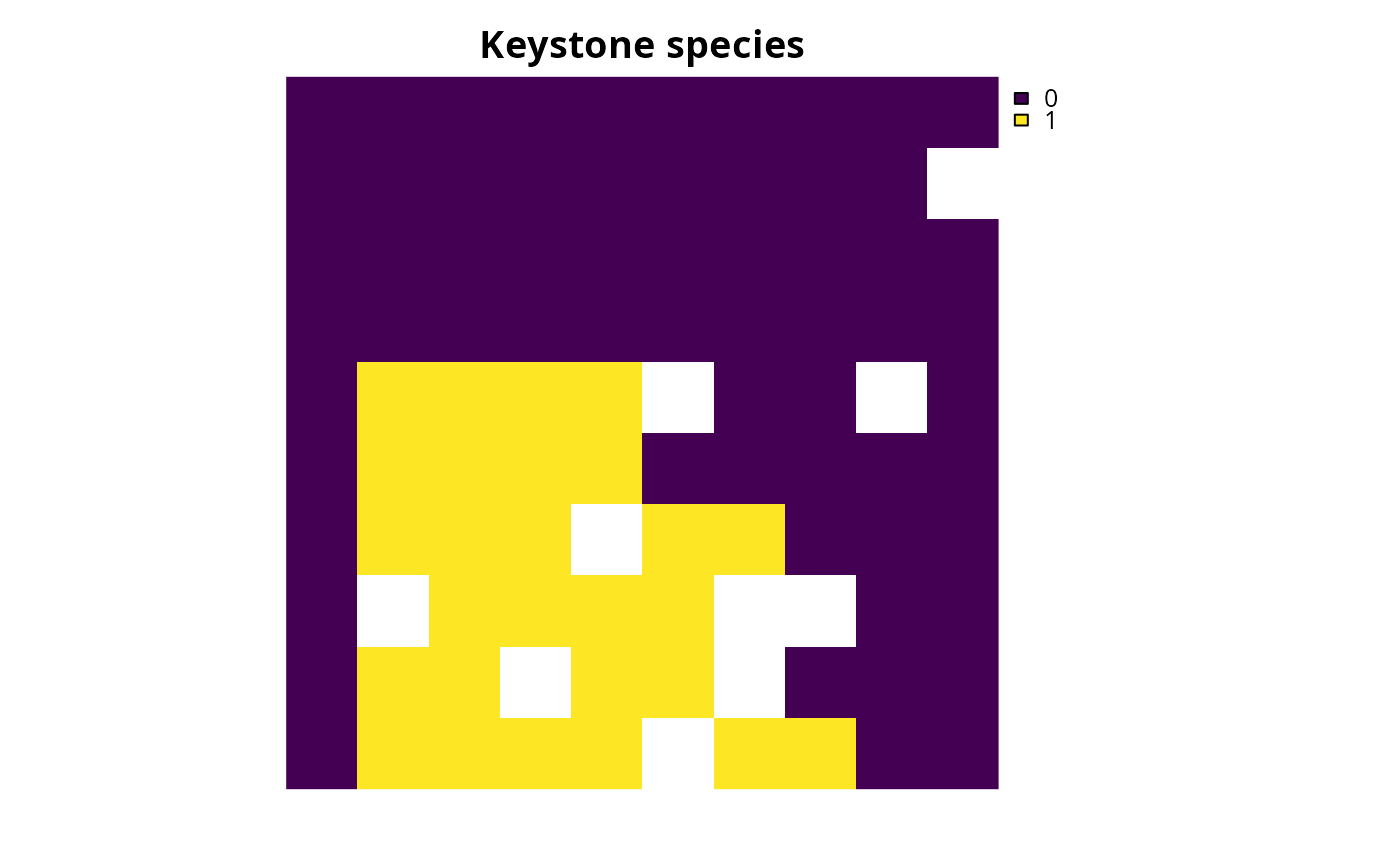

# plot the solutions to the single-objective problems

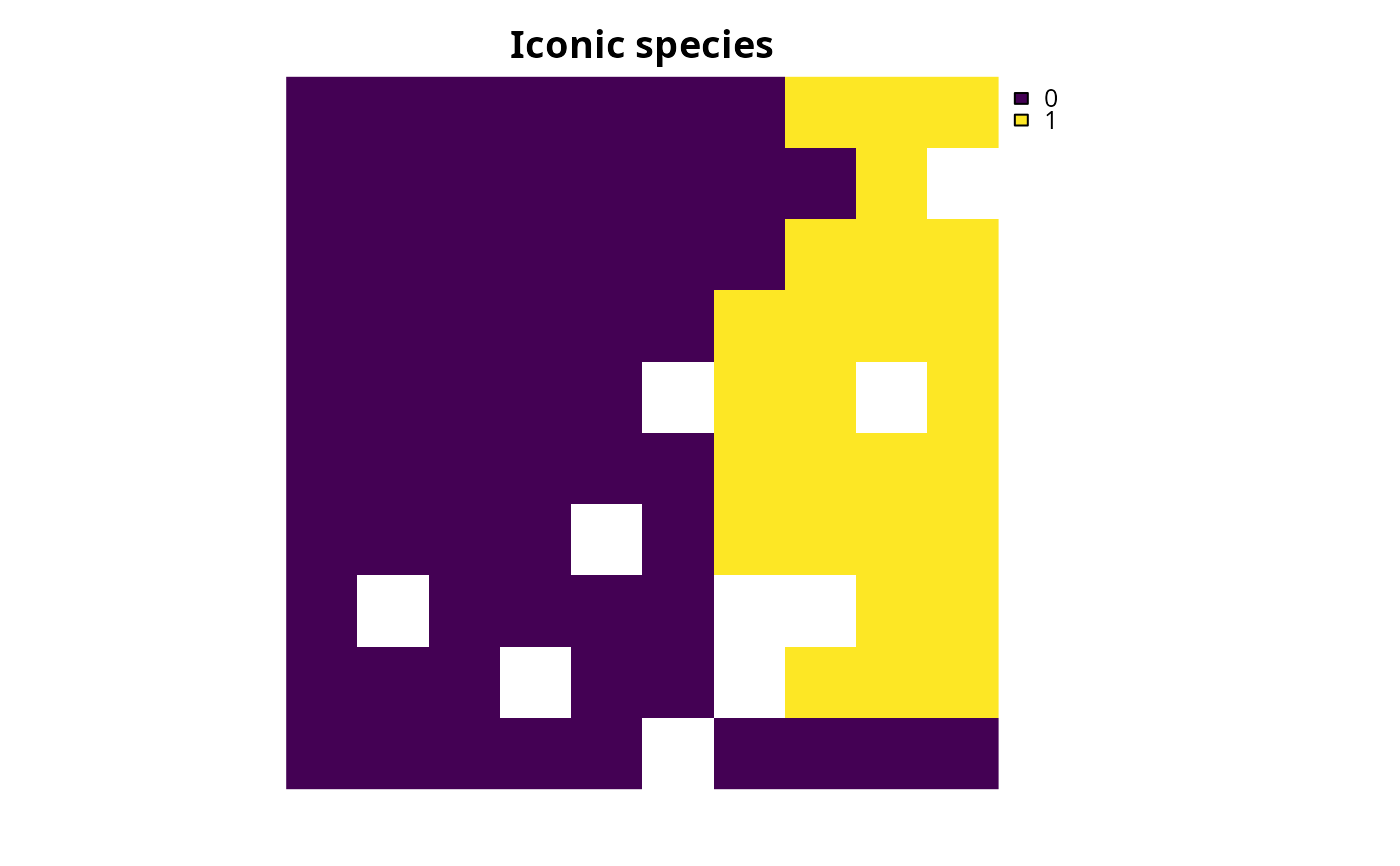

plot(s1, main = "Keystone species", axes = FALSE)

plot(s2, main = "Iconic species", axes = FALSE)


# now we will a create multi-objective problem that simultaneously
# considers both of these objectives

# the first objective for keystone species will have a higher order of
# priority than the second objective for iconic species -- because
# the long-term persistence of iconic species depends on ecosystem
# functioning -- and we will specify a very small relative tolerance
# parameter so that the solution has a relatively high performance according
# to the first objective (i.e., relatively low representation shortfalls for
# keystone species)
mp1 <-
  multi_problem(keystone_obj = p1, iconic_obj = p2) %>%
  add_hier_approach(
    rel_tol = 0.01,
    priority = c(2, 1),
    verbose = FALSE
  ) %>%
  add_default_solver(verbose = FALSE)

# solve multi-objective problem
ms1 <- solve(mp1)

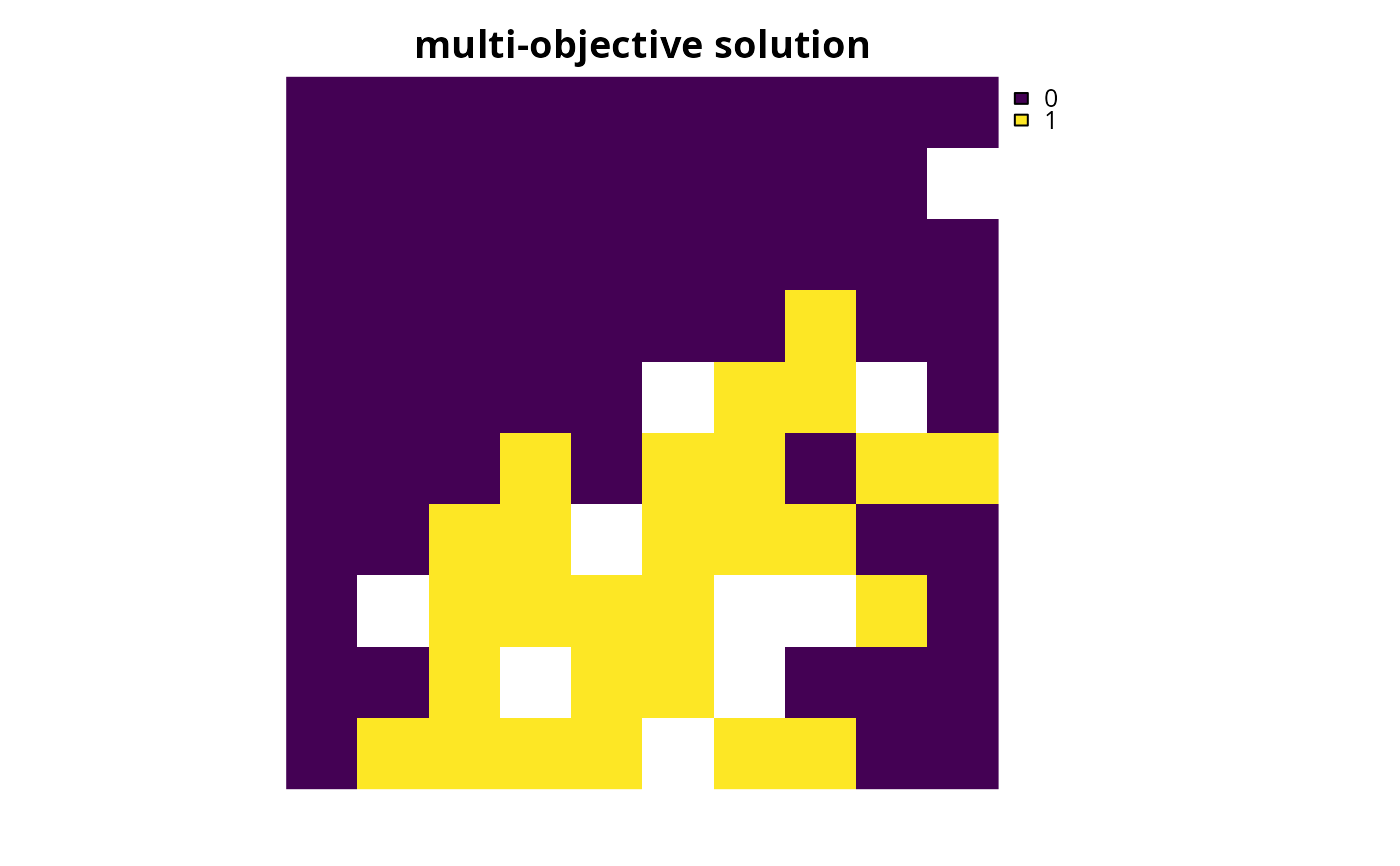

# plot solution to multi-objective problem
plot(ms1, main = "multi-objective solution", axes = FALSE)


# we will explore trade-offs between the two objectives, by generating
# multiple solutions using multi-objective optimization

# create a matrix with multiple different relative tolerance values
rel_tol_matrix <- approach_rel_tol_matrix(
  n_problems = 2, n_values = 20, max = 1.2
)

# print matrix with relative tolerance values
print(rel_tol_matrix)
#>             [,1]
#>  [1,] 0.00000000
#>  [2,] 0.06315789
#>  [3,] 0.12631579
#>  [4,] 0.18947368
#>  [5,] 0.25263158
#>  [6,] 0.31578947
#>  [7,] 0.37894737
#>  [8,] 0.44210526
#>  [9,] 0.50526316
#> [10,] 0.56842105
#> [11,] 0.63157895
#> [12,] 0.69473684
#> [13,] 0.75789474
#> [14,] 0.82105263
#> [15,] 0.88421053
#> [16,] 0.94736842
#> [17,] 1.01052632
#> [18,] 1.07368421
#> [19,] 1.13684211
#> [20,] 1.20000000

# create a multi-objective problem with the matrix of relative tolerance
# values and - because we do not specify values for priority - the
# optimization process will assume that the objectives are already
# specified in order of priority
mp2 <-
  multi_problem(keystone_obj = p1, iconic_obj = p2) %>%
  add_hier_approach(rel_tol = rel_tol_matrix, verbose = TRUE) %>%
  add_default_solver(gap = 0.01, verbose = FALSE)

# solve multi-objective problem and remove duplicate solutions
ms2 <- solve(mp2, remove_duplicates = TRUE)
#> Generating solutions ■■■■■                            | 3/20 |  15% | ETA: 7s
#> Generating solutions ■■■■■■■■■■■■■■■                  | 9/20 |  45% | ETA: 5s
#> Generating solutions ■■■■■■■■■■■■■■■■■■■■■■■■■■■      | 17/20 |  85% | ETA: 1s
#> Generating solutions ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■  | 20/20 | 100% | ETA: 0s
#> ℹ Found 7 out of the requested 20 non-duplicate solutions.

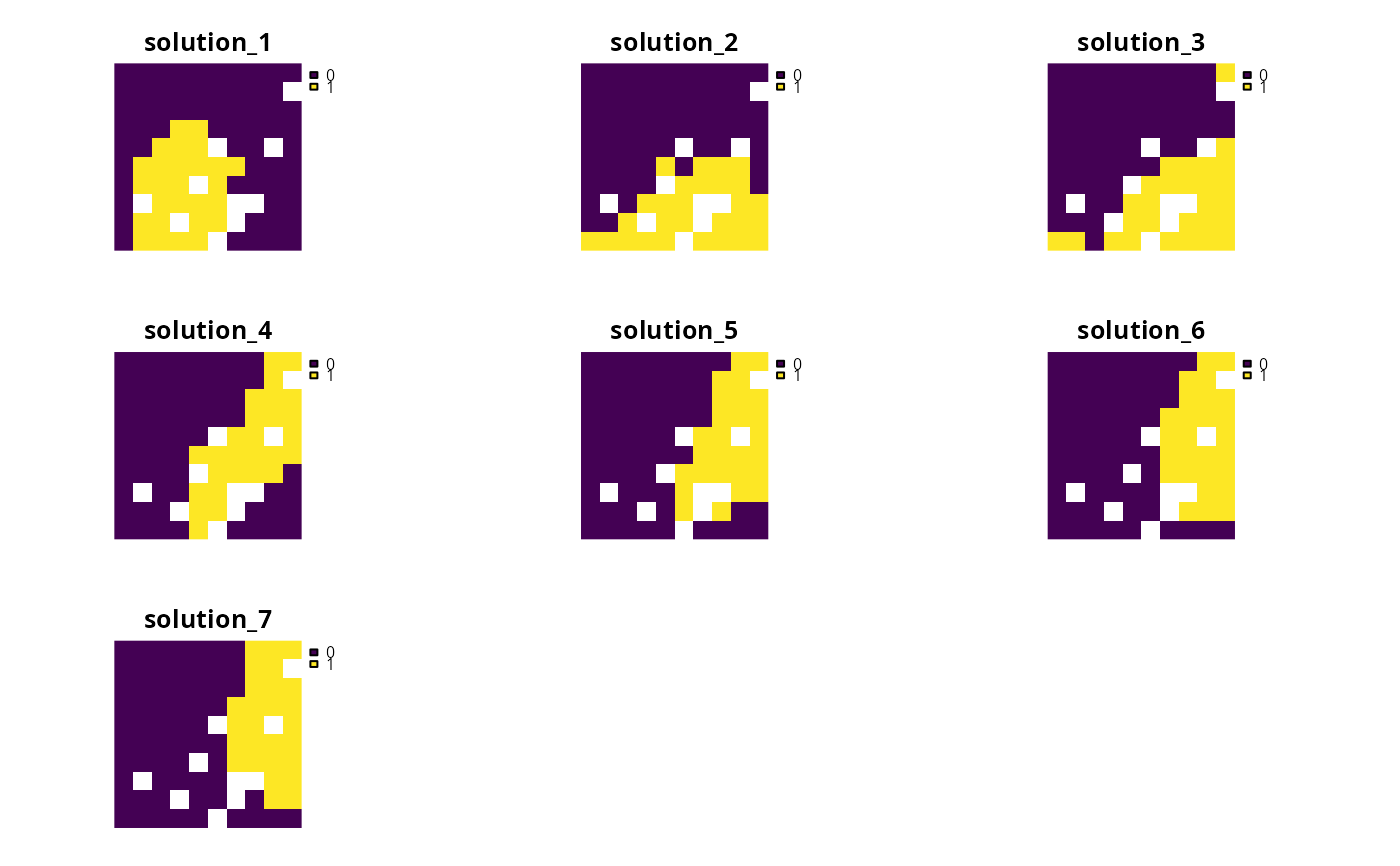

# plot multiple solutions
plot(terra::rast(ms2), axes = FALSE)


# extract objective values for the solutions
obj_matrix <- attributes(ms2)$objective

# print the objective values
print(obj_matrix)
#>            keystone_obj iconic_obj
#> solution_1    0.8570267  0.8400900
#> solution_2    0.9111362  0.7086196
#> solution_3    0.9652827  0.6677060
#> solution_4    1.0194107  0.6370060
#> solution_5    1.0735387  0.6115551
#> solution_6    1.1276667  0.6057715
#> solution_7    1.5065627  0.6019638

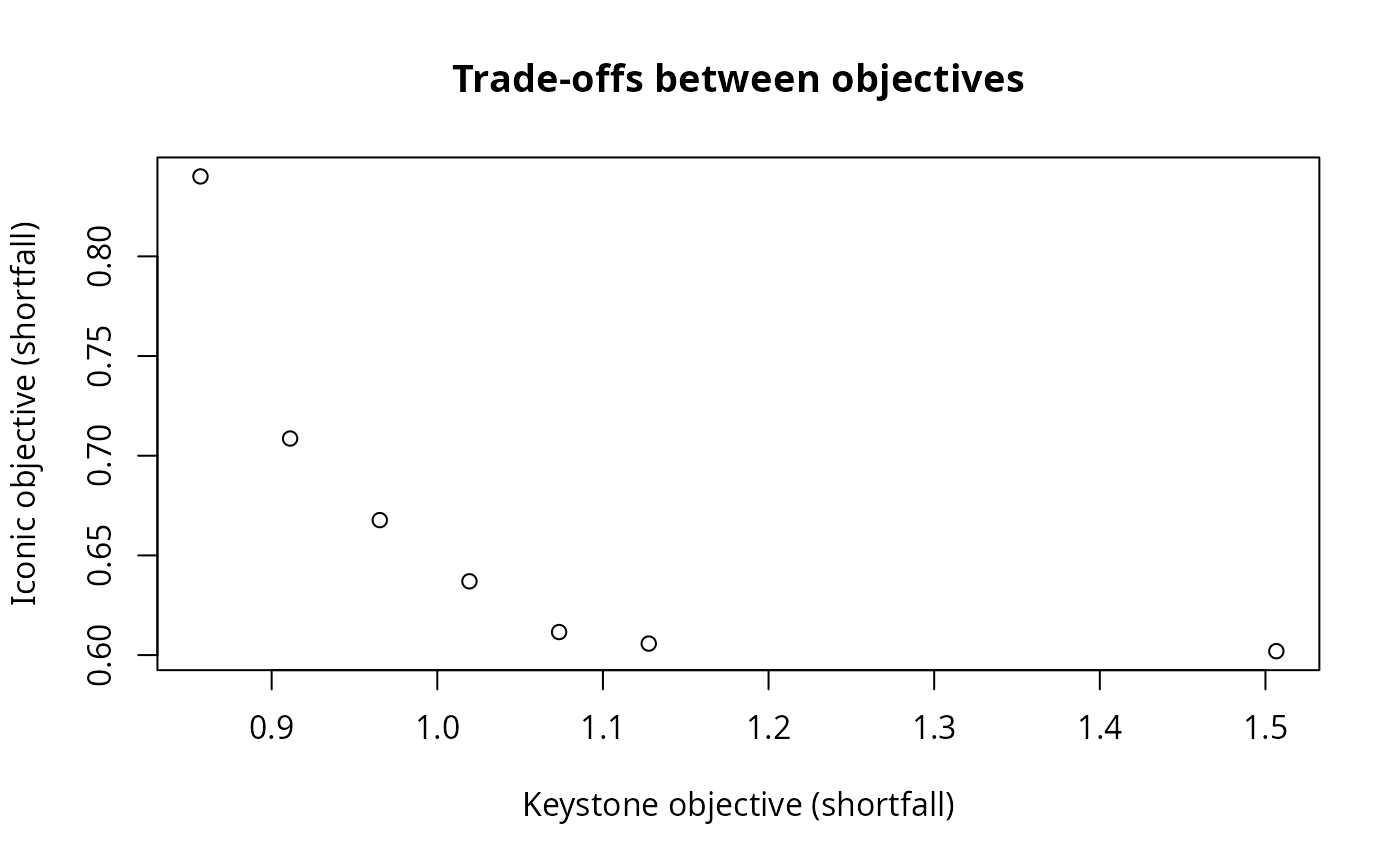

# plot the objectives values to visualize trade-offs
# (note that smaller values are better because these objectives seek to
# minimize representation shortfalls)
plot(
  obj_matrix,
  main = "Trade-offs between objectives",
  xlab = "Keystone objective (shortfall)",
  ylab = "Iconic objective (shortfall)"
)
